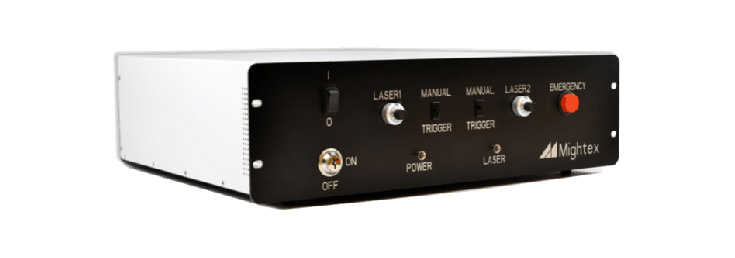

Mightex Fiber-Coupled Laser Sources

Description

Mightex fiber-coupled laser light sources are designed to produce high power and high intensity output of illumination through an optical fiber patchcord.



Specifications:

  Output Power (mW)
Part Number @ 405 nm @ 463 nm @ 465 nm @ 520 nm @ 635 nm
LSR-040-0405 500 - - - -
LSR-040-0463 - 1100 - - -
LSR-040-0465 1 - - 3200 - -
LSR-040-0520 - - - 500 -
LSR-040-0635 - - - - 500
LSR-040-0405-0463 450 1000 - - -
LSR-040-0405-0635 450 - - - 450
LSR-040-0463-0635 - 1000 - - 450

Note: 1. LSR-040-0465 is only available as a single-channel laser. It cannot be combined with other wavelengths.





Safety Features:

  • Power Switch
  • Key Switch
  • Emergency Switch
  • Interlock

Intensity Control:

  • Manual mode: 10-turn diales for each wavelength
  • Analog mode: 0-5 V for each wavelength
  • Maximum modulation frequency (Analog mode): 100 kHz

Laser Output:

  • Single fixed fiber, 2.5 m in length

Communication:

  • USB port for firmware and configuration upgrade

Electrical:

  • 100-240 V 50-60 Hz 0.8 A

Mechanical:

  • 19″ 3U 483 × 436 × 132 mm
  • 9.8 kg
