Accessories for Mightex Lightguide Coupled and Collimated LED’s

(for GCS series etc.)

Liquid Lightguides

Ask a question about this product

Description

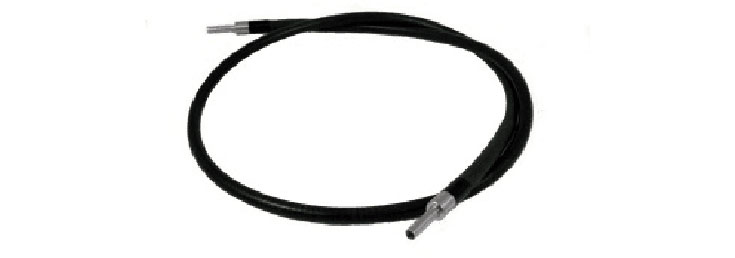

LLG-03-59-300-0650-1: Liquid lightguide, 3 mm core, 0.59 NA, 300-650 nm, 1 meter (ferrule diameter: 5 mm).
LLG-03-59-300-0650-2: Liquid lightguide, 3 mm core, 0.59 NA, 300-650 nm, 2 meters (ferrule diameter: 5 mm).
LLG-03-59-340-0800-1: Liquid lightguide, 3 mm core, 0.59 NA, 340-800 nm, 1 meter (ferrule diameter: 5 mm).
LLG-03-59-340-0800-2: Liquid lightguide, 3 mm core, 0.59 NA, 340-800 nm, 2 meters (ferrule diameter: 5 mm).
LLG-03-59-420-2000-1: Liquid lightguide, 3 mm core, 0.59 NA, 420-2000 nm, 1 meter (ferrule diameter: 5 mm).
LLG-03-59-420-2000-2: Liquid lightguide, 3 mm core, 0.59 NA, 420-2000 nm, 2 meters (ferrule diameter: 5 mm).
LLG-05-59-340-0800-1: Liquid lightguide, 5 mm core, 0.59 NA, 340-0800 nm, 1 meter (ferrule diameter: 7 mm).
LLG-05-59-420-2000-1: Liquid lightguide, 5 mm core, 0.59 NA, 420-2000 nm, 1 meter (ferrule diameter: 7 mm).
LLG-05-59-420-2000-2: Liquid lightguide, 5 mm core, 0.59N A, 420-2000 nm, 2 meter (ferrule diameter: 7 mm).

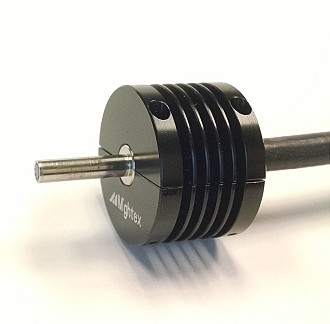

Mightex LED Heatsink — **Heatsink for 3 mm core liquid lightguides**

ACC-LLG-HS-03

ACC-GCS-C05: Electrical cable for GCS-series LED’s.

Mightex Lightguide Adapter — **Lightguide adapters for Type-A GCS source**

Lightguide adapters for Type-A GCS source ONLY. Each Type-A GCS product comes with a standard lightguide adapter for 5mm-diameter ferrule (A0510). Other adapters (as well as additional standard adapters) can be purchased separately, as follows:

ACC-GCS-A0510: Adapter for a lightguide with ferrule diameter of 5 mm and ferrule length of 10 mm or greater.
ACC-GCS-A0610: Adapter for a lightguide with ferrule diameter of 6 mm and ferrule length of 10 mm or greater.
ACC-GCS-A0710: Adapter for a lightguide with ferrule diameter of 7 mm and ferrule length of 10 mm or greater.
ACC-GCS-A0810: Adapter for a lightguide with ferrule diameter of 8 mm and ferrule length of 10 mm or greater.

Mightex LED light source adapter — **Lightguide adapters for Type-B GCS sources**

ACC-GCS-A0515, Adapter for lightguide with ferrule diameter of 5 mm and ferrule length of 15 mm or greater, for Type-B GCS only.
ACC-GCS-A0715, Adapter for lightguide with ferrule diameter of 7 mm and ferrule length of 15 mm or greater, for Type-B GCS only.
ACC-GCS-A0815, Adapter for lightguide with ferrule diameter of 8 mm and ferrule length of 15 mm or greater, for Type-B GCS only.
ACC-GCS-A1015, Adapter for lightguide with ferrule diameter of 10 mm and ferrule length of 15 mm or greater, for Type-B GCS only.

Mightex Lightguide Holder GCS-LGH-B-0515 — **Lightguide Holder for Converting Type-B LCS into Type-B GCS**

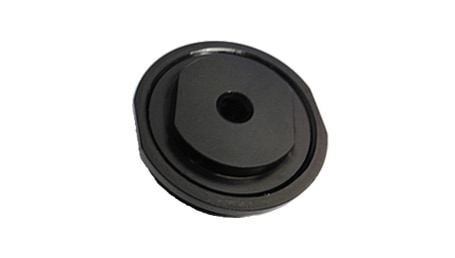

Lightguide Holder GCS-LGH-B-0515, used to replace the collimating lens on a Type-B LCS in order to convert it to a Type-B GCS. For lightguide with ferrule diameter of 5 mm (typical 3 mm-core light guide) and ferrule length of 15 mm or greater.

Lightguide collimators:

Lightguide collimators are used to either couple light from free space into a lightguide or collimate light from a lightguide to form a collimated (parallel) optical beam. Lightguide collimators are key components with numerous applications. For example, a lightguide collimator can project light from a lightguide into a uniform spot in free space.

High-numerical-aperture aspherical lenses are used for precise collimation and maximum light throughput. The collimator features adjustable focus from ~100mm to infinity. Various lightguide ferrule diameters are supported. Customization is available for other ferrule diameters.

The full field of view (FOV) or full divergence angle can be calculated as FOV = 2atan(D/2f), where D is the lightguide core diameter and f is the focal length of the lens. Alternatively, the linear field of view on an object placed at a distance L away from the collimator is D(L/f).

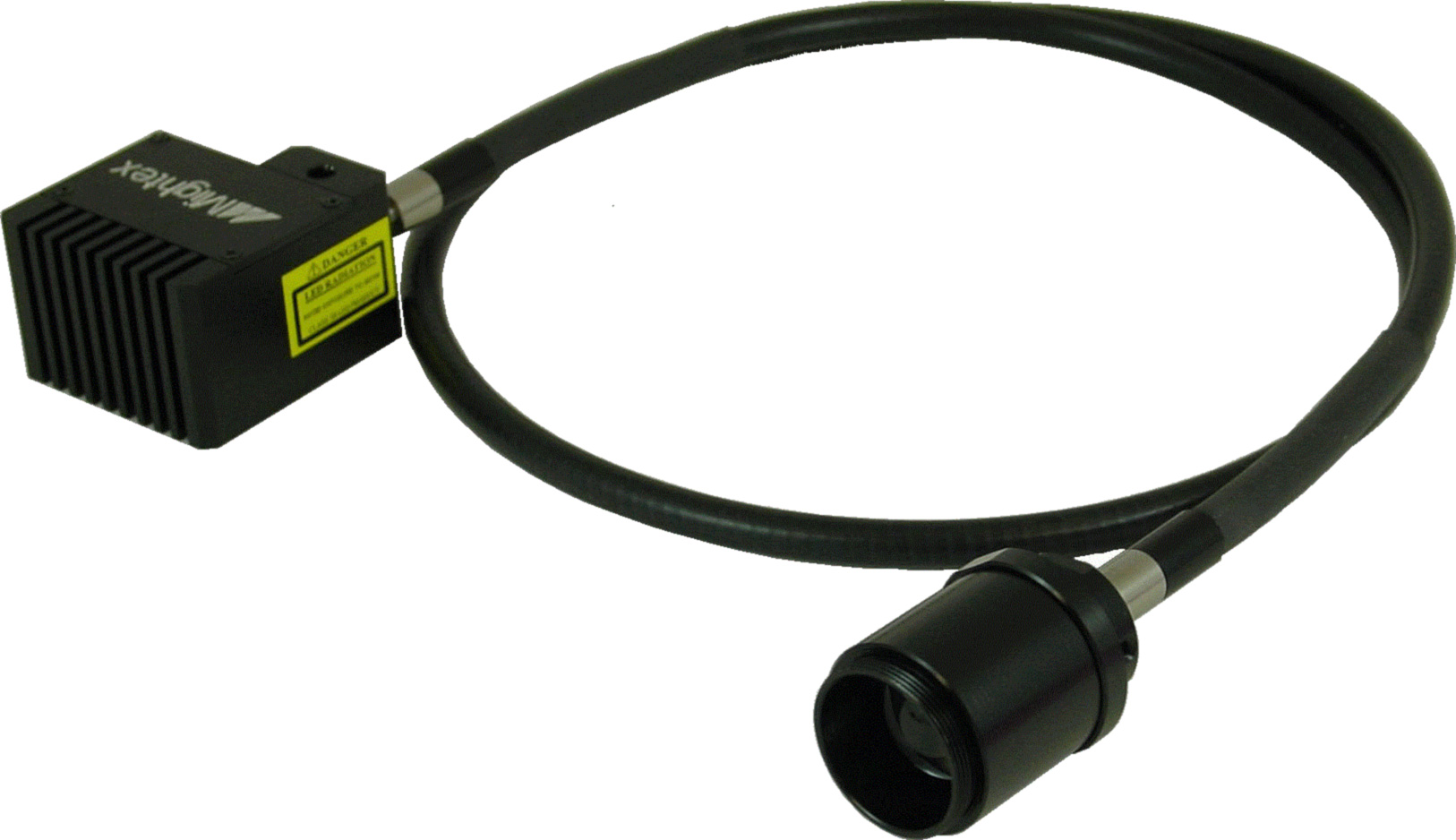

Lightguide collimator with lightguide and GCS source

Cables

ACC-FCS-C05: cable for (1) FCS-series fiber-coupled LED light sources; (2) WLS-series WheeLED Wavelength-Switchable LED Sources; (3) FFC-series Fiber-Coupled LED Light Sources; and (4) GCS-series Light Guide Coupled LED Sources.
ACC-FCS-C05-BLS: cable for FCS-, FFC-, GCS-, and WLS-series LED light sources. With push-pull connectors on both ends for connecting to BLS- controllers.
ACC-WFC4-C05: cable for 4-channel WFC-series LED sources.
ACC-WFC4-C05-BLS: cable for 4-channel WFC- light sources. With 4 push-pull connectors for connecting to BLS- controllers.

Mightex LCS adapter — **Fiber-optic Adapter**

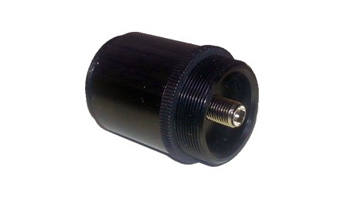

A fiber-optic adapter can be used to couple light from a collimated LED source (22-mm aperture) into a fiber patchcord:

LCS-FPC-ADP-SMA: Fiber-optic adapter for coupling LCS series LEDs (22-mm aperture) into a fiber patchcord. Accepts SMA connectorized fiber patchcords.

Mightex Filter holder ACC-LCS-EH — **Empty filter/optics holder for 22mm-clear-aperture LED Collimator Sources**

Installation Drawings:

Installation drawing for ACC-LCS-EH (.pdf file, 32 kB, at Manufacturer's website)

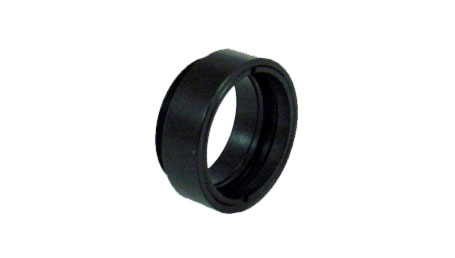

Installation drawing for ACC-LCS-H-22 (.pdf file, 32 kB at Manufacturer's website)

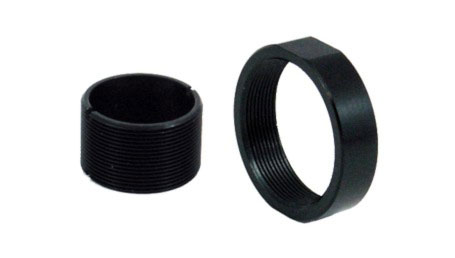

Mightex Connector Tubes for LCS Light Sources — **Connector Tubes for LCS Light Sources**

ACC-LCS-CMM: Male to Male C-Mount connector with inner threads
ACC-LCS-CFF: Female to Female C-Mount connector with outer threads.
ACC-LCS-22-T15: 15mm extension tube for 22-mm clear-aperture LCS light sources.

Mightex Multi-Wavelength Beam Combiner Mount — **Push-pull adjustable mount for Mightex Multi-Wavelength Beam Combiners**

P/N: ACC-LCS-BC25-PPM.

Mightex Multi-Wavelength Beam Combiner Adapter — **11 mm LCS Adapter for Multi-Wavelength Beam Combiners**

Model: ACC-BC25-011.

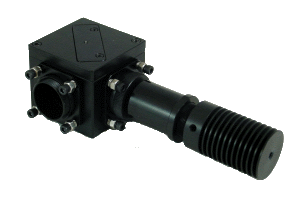

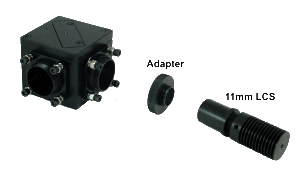

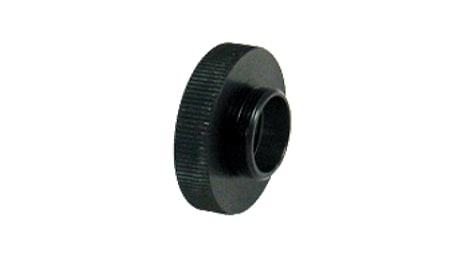

Currently, Mightex’s multi-wavelength beam combiners can only be used to DIRECTLY combine 22mm-diameter Collimated LED Sources. For 11mm-diameter collimated LED sources, (as shown below) a mechanical adapter (P/N: ACC-BC25-011) can be used to attach the LED sources to the beam combiners, before the 11-mm diameter collimated LED sources can be combined.

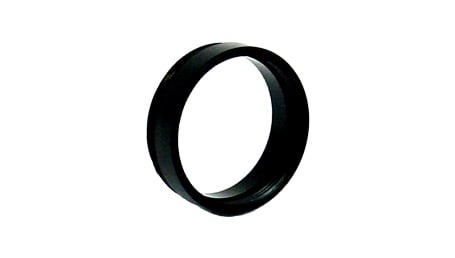

Mightex Microscope Device Adapter — **Adapter for converting M27 thread to C-thread**

Model: ACC-LCS-27C

IMPORTANT : (1) LED’s can ONLY be driven by a constant-current source, and NOT a voltage source (e.g. a battery, or a AC/DC power supply etc.); (2) Please always verify LED’s current rating first before applying current to the LED, and please always make sure NOT to apply current that is above the LED’s current rating.

About Mightex High Power LED Light Sources

Selecting a Microscopy LED Light Source

1. Select LED Wavelength

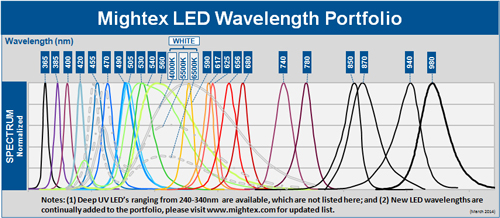

Emission Spectra — Multiple Available Wavelengths (Click to enlarge. Also see: Specification Sheet; Manufacturer's website)

2. Select LED Configuration

Mightex Microscope LED Light Source Configuration — Single-Wavelength: **Type A, Type B, Type J & Type H**

3. Select LED Controller

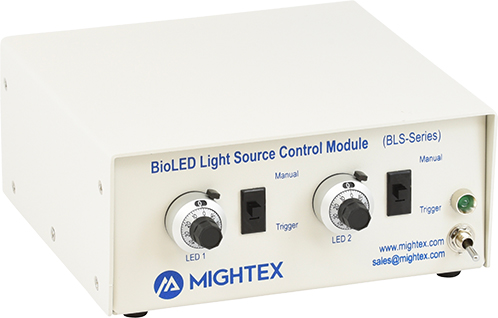

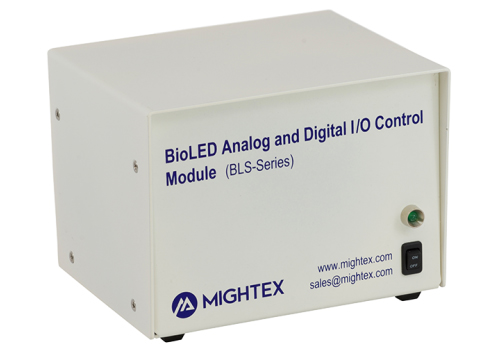

Mightex Microscope LED Light Source Controller Option — Manual/Analog: BLS-1000-2, BLS-3000-2, BLS-13000-1, and BLS-18000-1

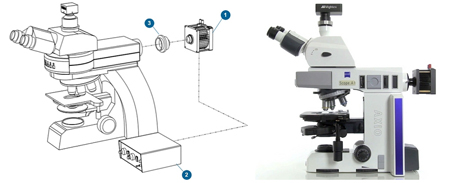

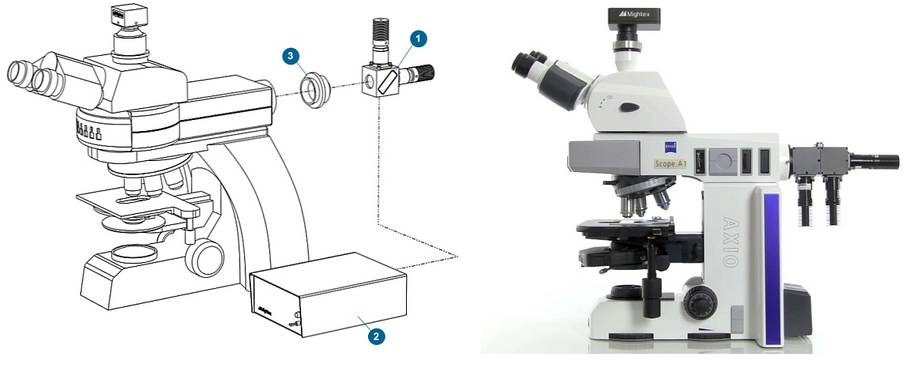

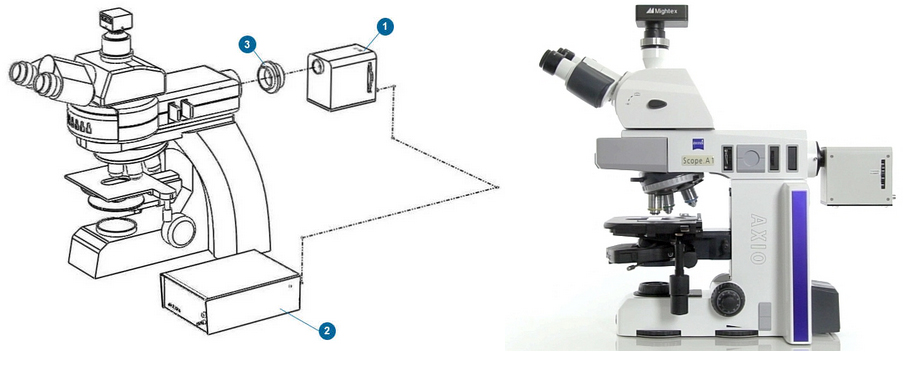

4. Microscope Coupling

Microscope adapters are available for all major manufacturers (Nikon, Olympus, Leica, Zeiss). If you have a different microscope, please contact us.
