Top-Box 2701-5

Signal Expansion Top-Box (CED)
Description



The standard Power1401 may be expanded in capability by fitting a range of modular top boxes.  These expansion boxes make internal connections to the Power1401 motherboard. They require the Power1401 expanded mechanics (can and case) and are unsuitable for end-user installation.

8 additional channels of waveform input, a total of 8 channels of waveform output and 2 digital output BNCs

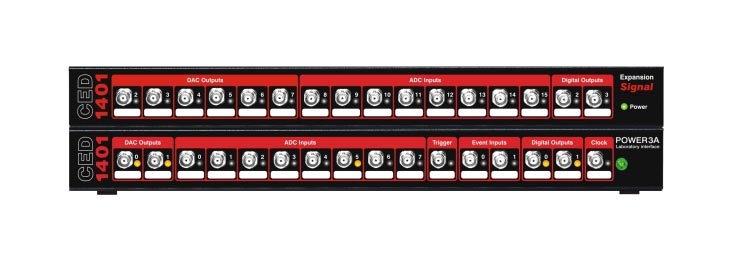

The Signal program is often used with many waveform channels. The 2701-5 top-box provides eight more ADC inputs and four more DACs, mapped onto ADC 8-15 and DAC 4-7 respectively, with 2 of the original digital outputs, 2 and 3, and 2 of the DACs all available on BNCs on the front panel.
