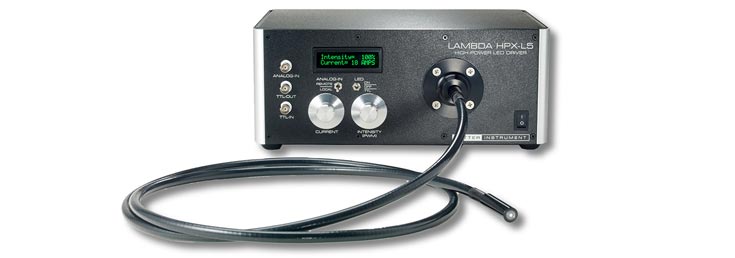

The Lambda HPX-L5 was created as a liquid light guide coupled version of the HPX, our newest high power LED light source. The liquid light guide allows for LED cooling via an internal heatsink with a whisper fan. This requires less maintenance that the liquidcooled direct mount version. Designed around a single 90 W 3 mm LED die, the Lambda HPX-L5 provides light output comparable to a 150 W xenon arc lamp when using the same light guide. The Lambda HPX-L5 is optimized for coupling to an optional 5mm liquid light guide, and off-the-shelf microscope adapter. The HPX is expected to retain 95 % of its original output at 5000 h, and 80 % after 10,000 h.
Because LEDs exhibit color shift with current change, the Lambda HPX was designed to dim the LED using either PWM or current control. PWM will be preferable for most applications, and allows the LED to run cooler. PWM switching is at 28KHz, high enough for use with most high speed cameras. For those with applications intolerant of any pulsed output, dimming via current control is also available. PWM and Current information are conveniently displayed on the front panel display, and are manually selectable via control knobs. Integral shuttering time is 10 microseconds to turn on and off. TTL input and output allows for triggering from either software or directly from another device such as a camera or digital IO board. PWM can also be controlled externally via analog input. Active temperature monitoring insures that the LED life will be maximized.
Light output is in the visible spectrum from 430 nm - 700 nm. Special order units are available with 630 nm, 530 nm, 460 nm, and 405 nm wavelength specific LEDs. The Lambda HPX-L5 can also be combined with our TLED to create a two-channel system with any combination of wavelengths.
- Vibration-free coupling via liquid light guide
- Dimming via PWM or Current control
- Lifetime > 50,000 h
- Front mounted connectors for ease of access
- TTL and Analog controls
- Integral Shuttering
- White light and UV combination available
White light (430 nm - 700 nm)
Turn on time: 10 µs
Turn off time: 10 µs
Noise/Short term stability
Input / Output
TTL & Analog
Standard White LEDs
Cool White only (see spectra)
630 nm, 530 nm, 460 nm, and 405 nm
PWM or Current control
311 mm W × 229 mm D × 133 mm H
50/60 Hz power line
150 W max.
The Lambda HPX-L5 LED light source comes with liquid light guide and power cables.
WC-HPX-L5 LED, cool white
460-HPX-L5 LED, 460 nm
530-HPX-L5 LED, 530 nm
630-HPX-L5 LED, 630 nm
405-HPX-L5 LED, 405 nm UV LED light source (suitable for additional DAPI channel)
The LAMBDA-HPX-L5DC includes the Lambda HPX-L5 LED light source with cool white LED, Lambda TLED+ with UV LED, liquid light guide, and cables.
You will need a mounting adapter for your microscope. Mounting adapters for Nikon, Zeiss, Leica and Olympus microscopes are available.
HPX-L5DC-Y Lambda HPX-L5 and TLED+ for Olympus
HPX-L5DC-N Lambda HPX-L5 and TLED+ for Nikon
HPX-L5DC-Z Lambda HPX-L5 and TLED+ for Zeiss
HPX-L5DC-L Lambda HPX-L5 and TLED+ for Leica
0777648 Replacement Liquid light guide (2 m length, 5 mm diameter)
TRIGGER USB trigger box (compatible with Micro-Manager software)
