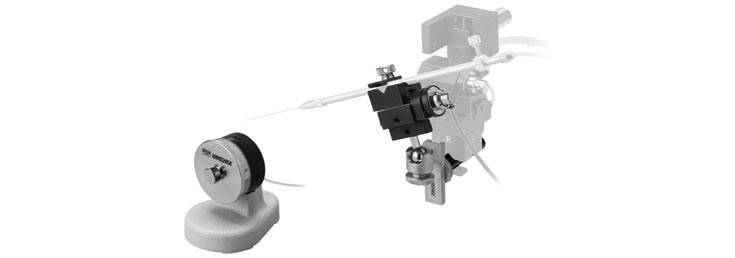

MMO-220A

Einachsiger Ölhydraulischer Mikromanipulator (Narishige)
Beschreibung

Three-dimensional manipulator with added movement capability in the same direction as the pipette

When using this unit to insert a pipette into the cell, operators can make further movement in the same direction, which minimizes the chance of damaging the cell.  This single-axis oil hydraulic manipulator meets that requirement and can also be used as an add-on manipulator.  A compact drive unit is installed on the tip of the ball joint, giving this model the same high accuracy as a general oil hydraulic micromanipulator.  The MMO-220A uses a general drum and can be combined with any kind of three-dimensional manipulator.



Accessories (included)
    CF-3 Tube Fixture

Movement range
    Fine    10 mm

Full rotation of knob
    250 µm

Minimum Graduation
    1 µm

Dimensions, Weight
    Control unit    W 70 × D 115 × H 100 mm, 1.15 kg
    Drive unit    W 52 × D 20 × H 35 mm, 38 g
